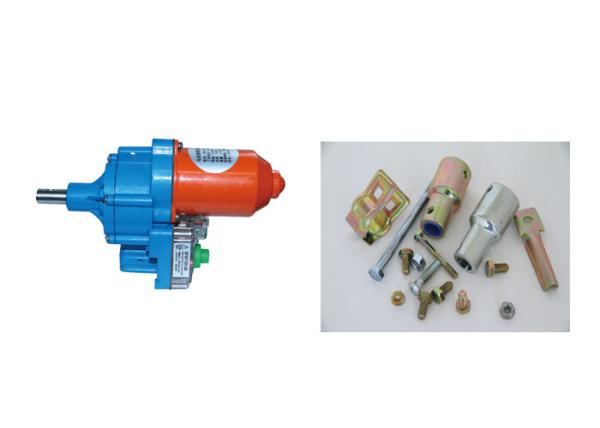

Plastic Film Greenhouse Roll Up Motor For Window Motor With Crepper
Product Description
The electric film rolling device is used to open and close the side
window and the top window of the plastic film greenhouse. It
replaces the traditional manual film rolling device to realize the
automatic control of fast rolling, film unwinding and greenhouse
environment. The length of the large roll film is 100m, and the
driving shaft adopts a thin-wall galvanized pipe of Φ25 * 1.5. It
has the characteristics of light weight, large output torque,
self-locking output, high stroke adjustment accuracy, large
adjustment range, rain resistance, anti-condensation, and low power
consumption. It is suitable for use in different climate conditions
and is a good choice for modern solar greenhouses. select.The utility model is used for opening and closing side windows and
top windows of a plastic film greenhouse. It replaces the
traditional manual film rolling device, and realizes automatic
control of fast film rolling, film ejection and greenhouse
environment. The length of the large roll film is 100m, and the
transmission shaft adopts Φ25 * 1.5 thin-wall galvanized pipe. It
has the characteristics of light weight, large output torque,
self-locking output, high stroke adjustment accuracy, large
adjustment range, rain resistance, anti-condensation, and low power
consumption. Suitable for use in different climate conditions, is a
good choice for modern solar greenhouses. select.
Input power: 60w
Working voltage: DC24v
No-load speed: 4
High current: 3.5A
Large output torque: 60Nm
Film width: ≤4m
Film length: ≤100m
Stroke adjustment accuracy: 3mm or less
Z dimension: 239mm × 102mm × 131mm
Machine weight: 2.6Kg
Advantage
1. The name of this design product: electric film rolling device.
2. Use of this design product: for the collection and release of
agricultural greenhouse films.
3. The main points of this design: the shape of the product.
4. The picture or photo that best embodies the main points of this
design: stereogram.
5. Bottom view is not common. Omit bottom view.
